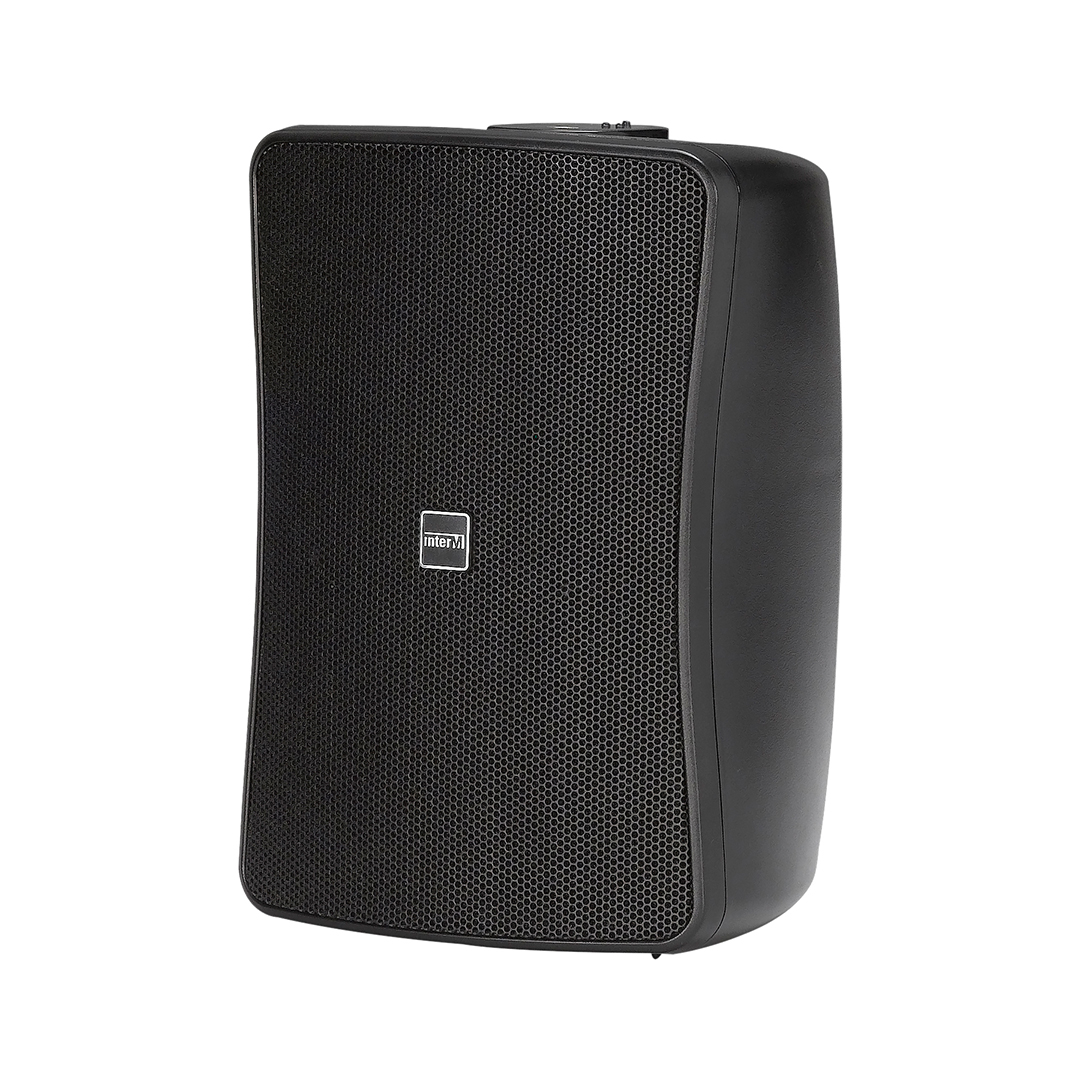

InterM WS-80T installation speaker

The WS Series installation speaker is a weather-resistant, high-quality audio solution designed for small to large venues. Ideal for environments like cafes, hotel lobbies, educational facilities, and exhibition halls, it offers clear sound with minimized distortion and optimized low-frequency transmission. With an IP54 rating, it is durable in damp conditions, and its aesthetic design ensures it blends seamlessly into any space. The speaker is easy to install, making it a versatile choice for various applications requiring reliable, high-quality background music or sound.

SKU: WS-80T Category: Tag:

Product Features
The all-new WS Series installation speaker is designed for both durability and aesthetic appeal, making it perfect for a variety of venues. This weather-resistant speaker is ideal for small to mid/large-sized spaces, particularly in environments requiring high-quality background music or clear audio.

It is well-suited for use in:

  • Cafes, hotel lobbies, and other venues requiring ambient sound
  • Educational facilities such as auditoriums and conference rooms
  • Cultural venues like exhibition halls

Key Features:

  • High-Quality Transducers for Low/High Frequencies
    Provides clear and balanced sound across both low and high ranges.
  • IP54 Water and Damp-Proof Rating
    Ensures durability in humid or wet environments, making it suitable for outdoor or semi-outdoor installations.
  • Sound Distortion Minimization
    Designed to deliver clear and precise audio without unwanted distortion.
  • Optimized Low-Pitched Sound Transmission
    Delivers deep, rich bass for a full-range listening experience.
  • Aesthetic Design
    Combines functionality with a sleek and modern look to complement any space.
  • Ease of Installation
    Simple setup process for quick deployment.
  • EaSe, EaSe Focus Data
    Designed to enhance user experience and system integration.







Product specification

WS-80T
Type 6.5″ 2Way Passive Wall Mount Speaker

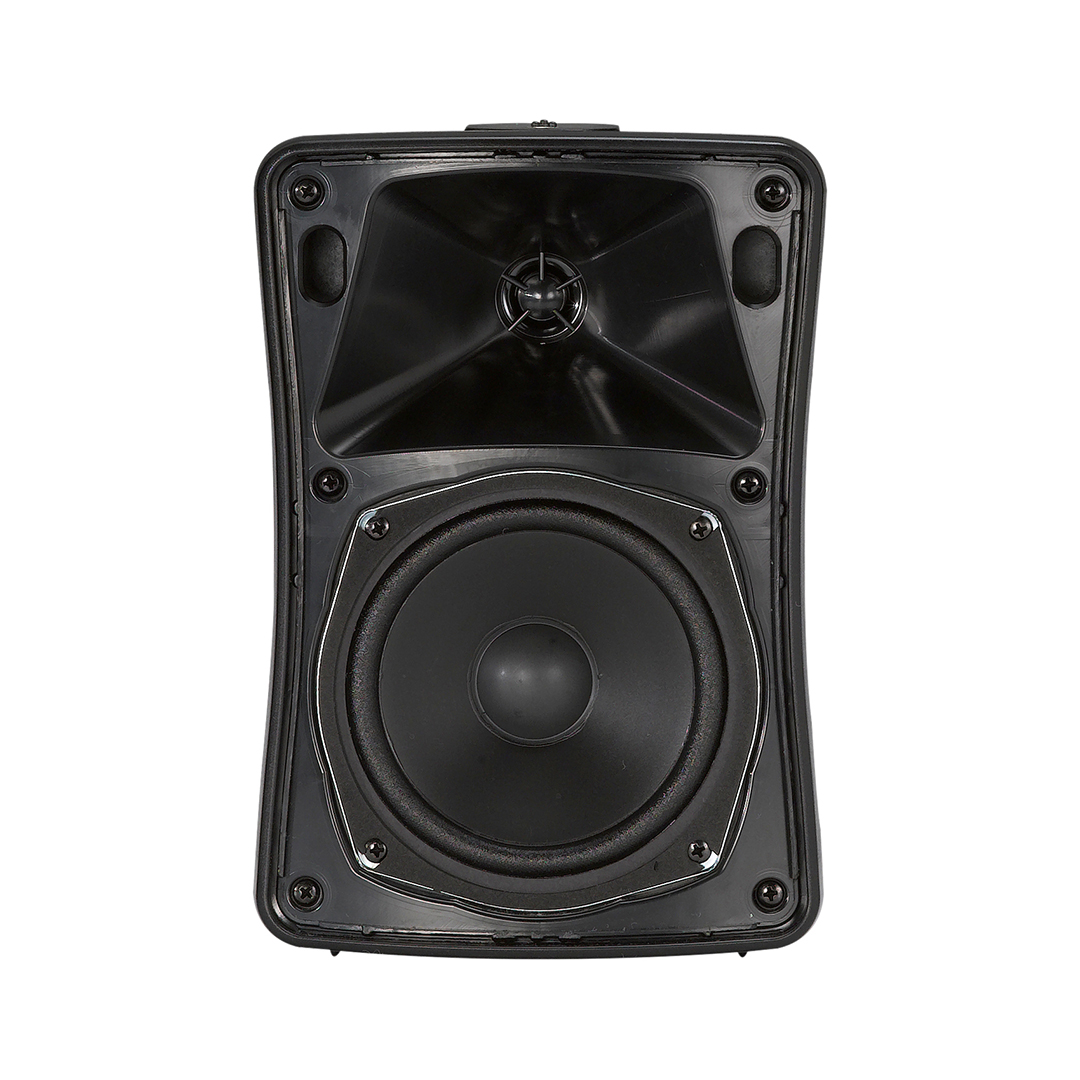

Driver WF : 6.5″, TW : 13mm
Power Handling (IEC) 80W
Input Power 100V 80/40W
Nominal Impedance 100V 125/250Ω
LOW 8Ω
Power Selection By Terminal
Frequency Range (-20%) 60Hz ~ 20kHz
Sensitivity (1W/1m) 86dB
Maximum SPL 105dB
Nominal Coverage 1kHz Asymmetric Horn
Horizontal Coverage : Far Field 60°, Near Field 120°
Vertical Coverage : upward +20°, downward -40° (On Axis)
Input connection 4P Screw Terminal
Enclosure Material ABS 일반
Enclosure Color Black/White
Grille Material Metal Grille
Grille Color Black/White
Weight (Set) 3.6kg
Dimensions (Net, Ø(WxH)xD, mm) 210 x 311 x 169
Weather Resistant IP54
Flame Resistant –
Certification KS
Included Accessories Knuckle Bracket
